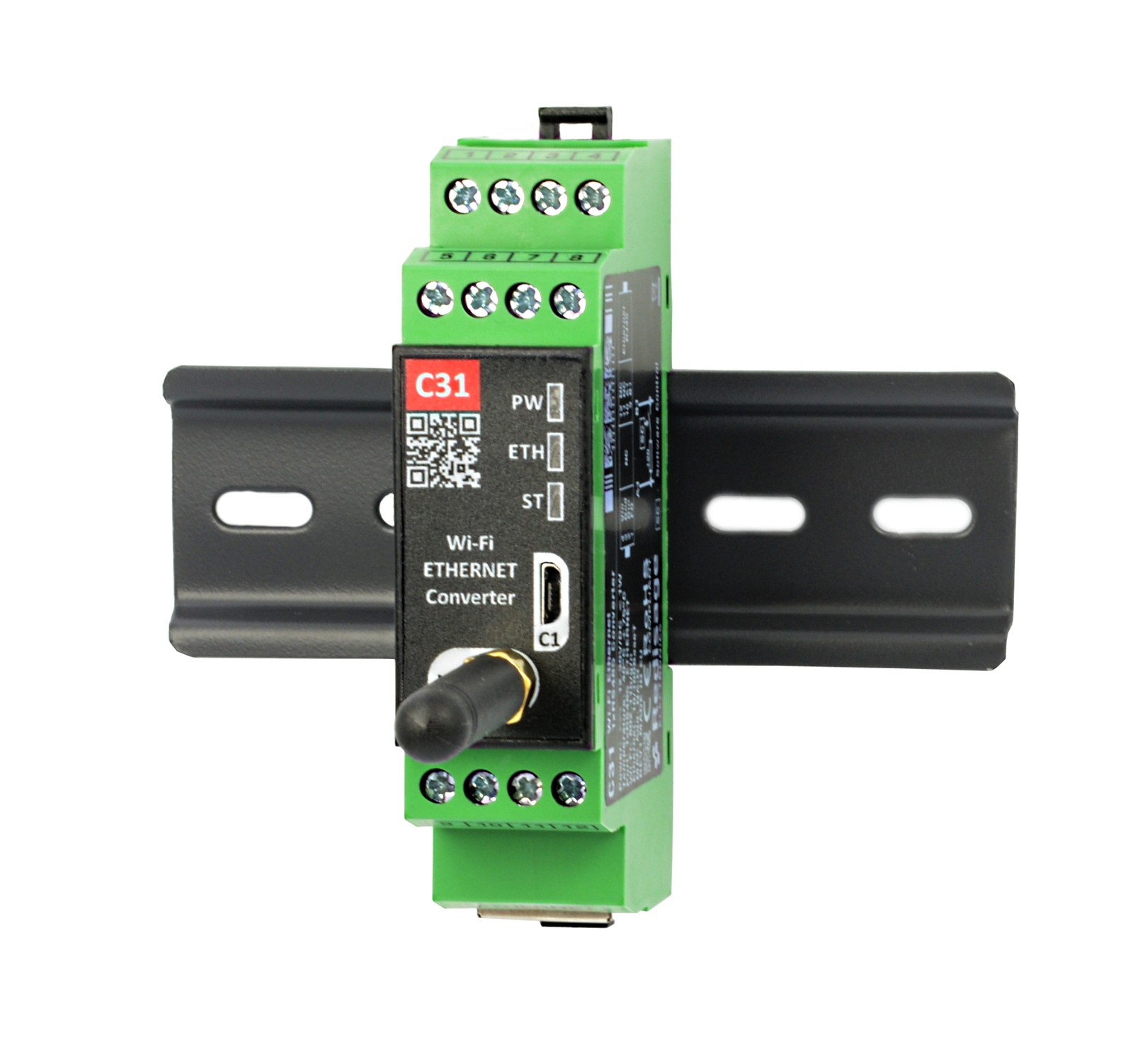

C31 Wi-Fi 802.11bgn Ethernet 10/100MB 1xRS485 Converter
- Wi-Fi 802.11bgn Ethernet 10/100MB 1xRS485 Converter
Product description
C31 is a complete hardware and software solution for creating remote communication ports. It provides a connection between a LAN host and devices equipped with an RS485 serial interface. A dedicated application ensures quick and easy configuration, while the network interface allows remote access and full control over communication from a computer. Virtual COM ports can be created to minimize wiring. The C31 is primarily characterized by its wireless communication capability (Wi-Fi), as well as RS485 port, data transmission speeds of up to 115200 bps, an RJ45 socket supporting Fast Ethernet, a dedicated EMC circuit ensuring connection quality, and low power consumption of less than 1W.
Technical Documentation
| Operations and Maintenance Manual | C31 Datasheet and Selection Guide |  |
| Redisage Documentation Space | doc.redisage.com |
Brand
Symbol
C31
Producer code
5903949781250
Series
Warranty
Main data
Power voltage
12-30 V/DC
Power connector
Screw terminal
Wi-Fi / Bluetooth
Yes
Work temperature range
-40°C to +75°C
Safety measures
ESD 4 kV / 8 kV
Burst
Surge
RF
Ethernet
Ethernet Interface
1x RJ45
WAN/LAN
2 kV Isolated
Speed
10/100 Base-T
Protocol
TCP
UDP
Virtual COM
Wi-Fi
Standard
802.11 b/g/n
Protection
128bit CCMP(AES)
TKIP
WAPI
WEP
CRC
Channel capacity
up to 150 Mbps
Serial Ports
Number of ports
1
Port type
1x RS485
Connector type
Screw terminal
Transmission speed
115200 bps
Data bits
7
8
Stop bits
1
2
Controll Bits
none
odd
even
Enclosure
Ingress Protection Code
IP20
Length
98 mm
Height
56.4 mm
Width
22.5 mm
Width in standard modules S (17.5 mm)
1.5 Module
Mounting
DIN Rail
3 Year Warranty
