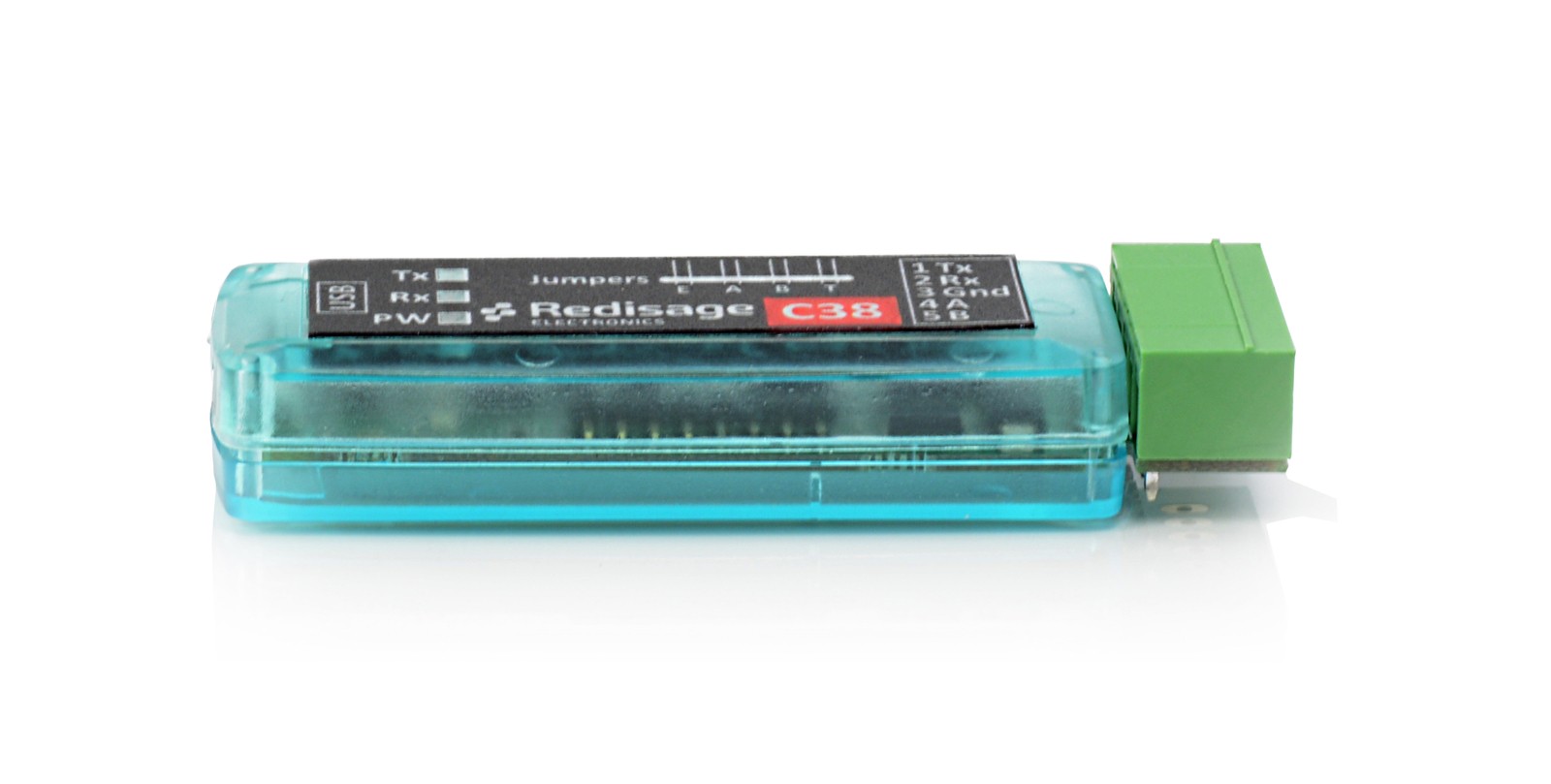

C38 - USB to RS232/RS485 Converter (Industrial FTDI Chipset)
C38 - USB to RS232/RS485 Converter (Industrial FTDI Chipset)
- Universal USB converter for RS232 and RS485 interfaces, featuring an FTDI chipset and hardware configuration jumpers.
Product Description
The Redisage C38 is a universal tool for automation engineers, combining RS232 and RS485 interfaces in a single USB-powered device. Based on the reliable FTDI chipset, it guarantees problem-free communication with industrial equipment like PLCs, inverters, and HMIs.
The device stands out with its hardware configuration capabilities. Built-in jumpers allow you to manually enable 120Ω termination, bias resistors, or echo cancellation. Key features:
• Combo Ports: Selectable RS232 (Tx/Rx) or RS485 (A/B)
• Chipset: FTDI (Stable drivers for all OS)
• Configurable: Hardware jumpers for RS485 settings
• Protection: ESD on data lines
• Power: USB Powered (Micro-B connector)
Technical Documentation
Datasheet (DTR):
⬇ Download C38 Datasheet
Knowledge Base:
🔗 doc.redisage.com
Brand
Symbol
C38
Producer code
5903949781441
Series
Warranty
Main data
Power voltage
5 V
Galvanic isolation
Non isolated
Power connector
Micro USB
Work temperature range
-40°C to +75°C
Safety measures
ESD 4 kV / 8 kV
Burst
Surge
RF
LED
Tx
Rx
Power
USB
Channel capacity
USB 2.0
Host controller
UHCI
OHCI
EHCI
Serial Ports
Number of ports
2
Port type
1x RS232/RS485
1x USB
Connector type
Screw terminal
Micro USB
Transmission speed
115200 bps
Data bits
7
8
Stop bits
1
2
Controll Bits
none
odd
even
3 Year Warranty
