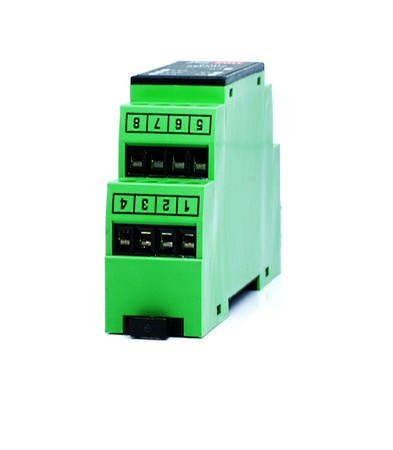

H02 - RS485 Hub 1:3 (Output Ports 3kV Isolation)
H02 - RS485 Hub 1:3 (Output Ports 3kV Isolation)
- RS485 Hub creating 3 isolated branches, protecting them from each other and the main bus.
Product Description
The Redisage H02 is a specialized RS485 Hub focused on protecting field devices. It splits the main bus into three branches, providing galvanic isolation for the Output Ports. This means that the three output branches are isolated from the input port and from each other.
This configuration is ideal for isolating problematic network segments. If one branch experiences interference or a short circuit, the other two branches and the Master controller remain unaffected. Key features:
• Function: 1-to-3 Star Topology Splitter
• Isolation: Output Ports (Branch separation)
• Power Supply: 12-30 VDC / 24 VAC
• Protection: ESD on all lines
Technical Documentation
Datasheet (DTR): ⬇ Download H02 Datasheet
Knowledge Base: 🔗 doc.redisage.com
Main data
Power voltage
12-30 V/DC
Galvanic isolation
Slave RS485 3 kV/DC
Power connector
Screw terminal
Work temperature range
-40°C to +75°C
Safety measures
ESD 4 kV / 8 kV
Burst
Surge
RF
LED
Tx
4x Rx
Power
Serial Ports
Number of ports
4
Port type
4x RS485
Connector type
Screw terminal
Transmission speed
115200 bps
Data bits
7
8
Stop bits
1
2
Controll Bits
none
odd
even
Enclosure
Ingress Protection Code
IP20
Length
98 mm
Height
56.4 mm
Width
22.5 mm
Width in standard modules S (17.5 mm)
1.5 Module
Mounting
DIN Rail
Standards and Certifications
Declarations of Conformity
CE
RoHS
EMC
LVD
Norms
61000-6-2 - Immunity standard for industrial environments
61000-6-4 - Emission standard for industrial environments
About H02
H02 – Isolating RS485 Branches
The H02 RS485 Hub is designed to segment large industrial networks into smaller, electrically separate blocks. While the main function is splitting one RS485 line into three, the H02 focuses its protection on the output ports. Each of the three output branches is galvanically isolated from the input and from the other branches.
This architecture is critical when devices on different branches are powered from different sources or located in areas with high potential differences. It effectively prevents ground loops and ensures that a failure (like a lightning strike or voltage spike) on Branch A does not propagate to Branch B or C.
The device supports data rates up to 115200 bps and regenerates the signal on each branch, allowing for extended cable runs up to 1200m per port.
Technical Specifications:- Function: 1 Input to 3 Outputs.
- Isolation Type: Output Ports (Branch-to-Branch & Branch-to-Input).
- Power Supply: 12–30 VDC or 24 VAC.
- Housing: Compact DIN-rail enclosure (1.5M width).
Protect your field devices with the H02. See configuration details in the user manual.
